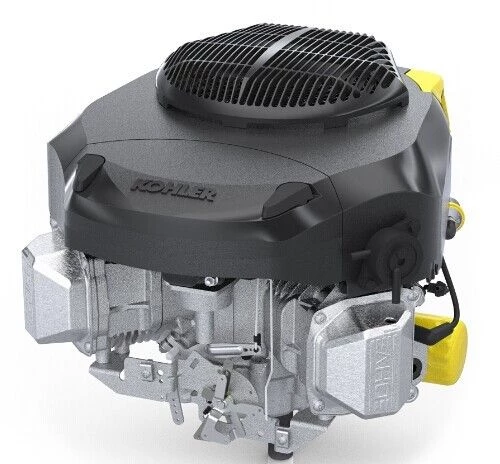

Kohler Engines KT735-3011 24 HP 725cc Vertical Shaft V-Twin Gas Engine

Kohler KT735-3011 Engine

Features:

• 24 HP 725cc Vertical Shaft
• 1.00″ x 3.16 Crankshaft Assy Part 32 014 327-S
• Professional grade design with durable components for powerful cuts
• Durable long-lasting design with cast-iron cylinder bores and pressure lubrication
• User-friendly with easily accessible service points
• High-torque inertia drive starter with extra-large output
• Easy-access air filter for quick inspection
• High-torque inertia drive starter with extra-large output
• Consistent-Cut technology provides more consistent power
• Optional PRO Performance air, oil, and fuel filters
• Dual-seal air filter to keep debris out

Specs:

Model	KT735
J1940 Power hp(kW) 1	24 (17.9)
Displacement cu in (cc)	44.2 (725)
Bore in (mm)	3.3 (83)
Stroke in (mm)	2.6 (67)
Peak Torque lbs. ft (Nm)	40.5 (54.9)
Compression Ratio	9.1:1
Dry Weight lbs (kg)	85 (38.6)
Oil Capacity U.S. quarts (L)	2 (1.9)
Lubrication	Pressure lubrication w/full flow filter
Dimensions L x W x H in	18.6 x 17.5 x 13.9
Backpressure Limit 2	50
J1995 Power hp (kW) 3	22.2 (16.6)
J1995 Rated Speed (RPM)	3600
