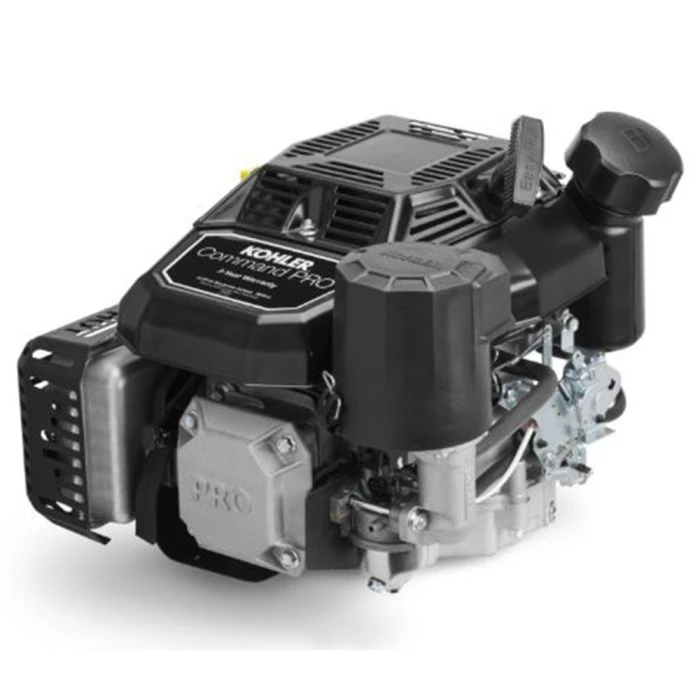

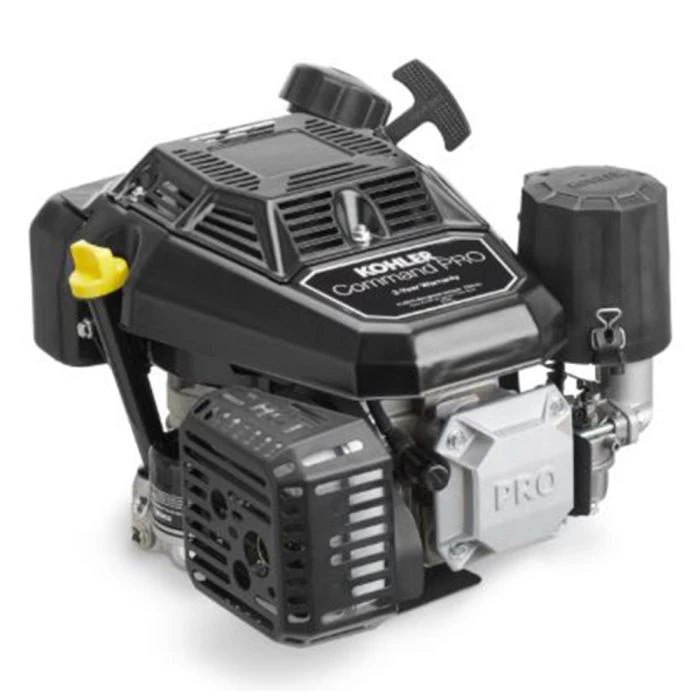

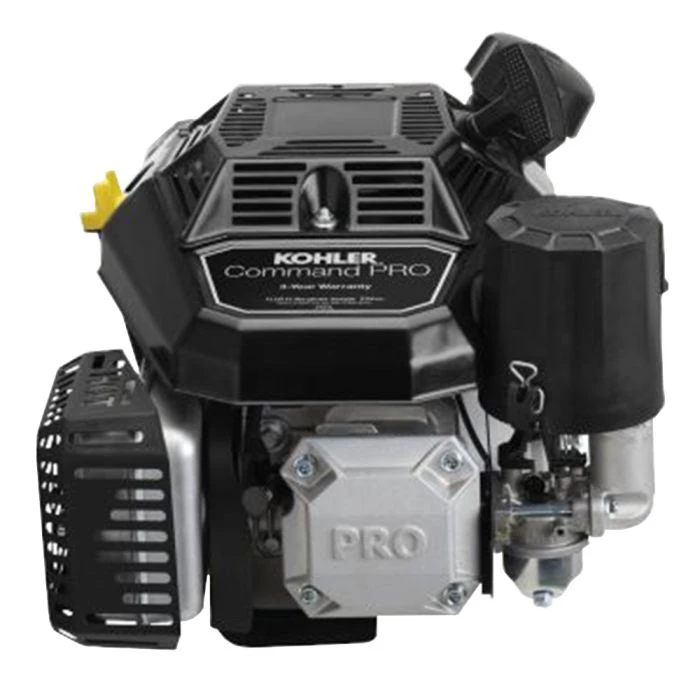

Kohler Command Pro Recoil Start Engine Vertical Shaft 200cc

Kohler Command Pro PA-CV200-3001

Features:

• Overhead Valve
• Cast Iron Cylinder Bore
• 200cc Displacement (CV200)
• Full Pressure Lubrication with Oil Filter
• Die-Cast Valve Cover with Rubber Gasket
• 1/4 Turn, High-Mount Yellow Dipstick
• Idle Low Speed at 1800 RPM
• Internally-Vented Carburetor
• Quad-CleanTM Air Filter (14 083 26-S – Replacement Element)
• 75 Micron Fuel Filter – needed on Tankless Specs
• Easy-PullTM Recoil Starter with Ergonomic Handle
• Front Exit Muffler with Guard
• Stamped Steel Engine Cover – Black
• Stamped Steel Recoil Assembly – Black
• PTO Length, 4.75 mm Keyway, 2 #505 Woodruff Slots, Drilled and
• Tapped 7/16”-20 UNF
• Keyway, Threaded OD
• Length, 4.75 mm Keyway, 2 #505 Woodruff Slots, Drilled and
• Tapped 7/16”-20 UNF
• 12mm RFI Spark Plug (14 132 14-S Replacement Plug)
• SAE J609 Mounting Flange E (8” dia. BC)
• EPA Phase II, CARB Tier II Exhaust Compliant
• RFI Compliant
