Sale!

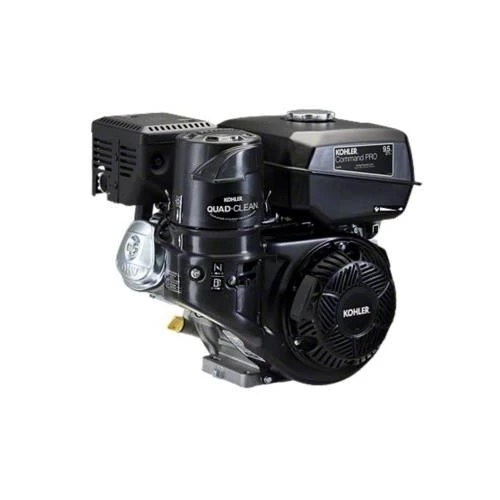

Kohler Command PRO 9.5 HP Replacement Engine 1″ x 3-1/2″ Horizontal – CH395-3031

Original price was: $567.00.Current price is: $90.99.

SKU: CH3953031 Categories: Engines, Kohler Engines

Quality You Can Count On
Safe Payments for a Better Shopping Experience
Shop with confidence, enjoy free returns.
Efficient and effective customer service, online.

What Makes this Engine Different?

Recoil or Electric Start Option with key box and 10 amp charging system
Carb Tier III, EPA Phase 3 and RFI compliant

Features

Overhead Valve Design
Electronic Ignition
Quad-Clean, 4-stage, all season, heavy duty, cyclonic air cleaner
Dual Oil Fill Locations and Oil Drains
Cast Iron Cylinder Liner
7 L Metal Tank w/ strainer
Fuel Shut-off Valve
Stellite Exhaust Valve
Engine Mounted Throttle Calbe and Chokr Controls, Remote Throttle Ready
Oil Sentry Switch Installed (No Light)
Dual Ball Bearings, PTO and Flywheel
Balance Shaft
Metal Blower Housing
Indexable Recoil Starter
Large Capacity Muffler w/ Heat Shield and Spark Arrestor
Color- Black with Cast Aluminum

Specs

Brand	Kohler
Part #	PA-CH395-3031
Warranty	3 Year Commercial
Shipping Weight	82 lbs.
Crankshaft Diameter	1″
Crankshaft Length	3-1/2″
Starter Type	Recoil
Max RPM	4000
Displacement	277cc
Ignition System	Electronic
Lubrication System	Splash
Oil Capacity	1.4 qt.
Fuel Type	Gasoline
Cooling System	Air
Gross Torque (ft./lbs)	13.9
Cylinders	1
Bore x Stroke	3.1″ x 2.3″
Crankshaft Orientation	Horizontal

MPN	PA-CH395-3031
Manufacturer	Kohler, Engines
Engine Size	9.5, hp
Engine Type	4-Stroke
Starting System	Recoil, Start
Part #	CH395-3031
Shaft Position	Horizontal
# of Cylinders	1
Shaft Width	1"
Shaft Length	3-1/2"
Oil tank volume	1.4, qt.
Engine Cooling	Air
Weight (lbs.)	82
Warranty	3, Year, Commercial, Warranty
Shipping Options	Standard, Ground, Shipping
