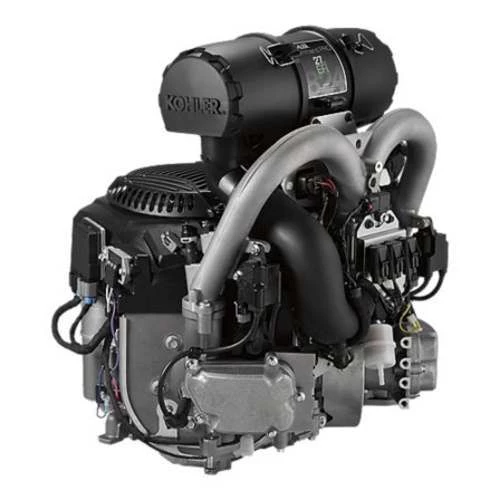

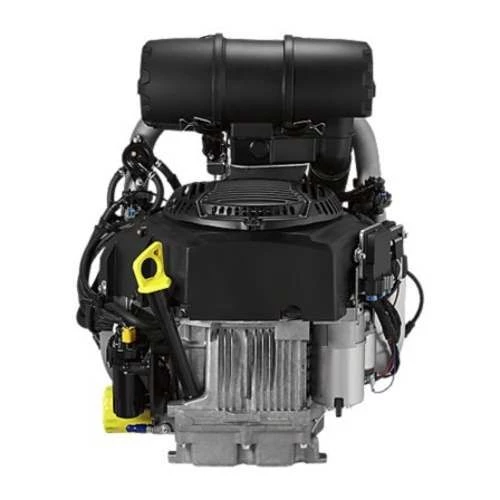

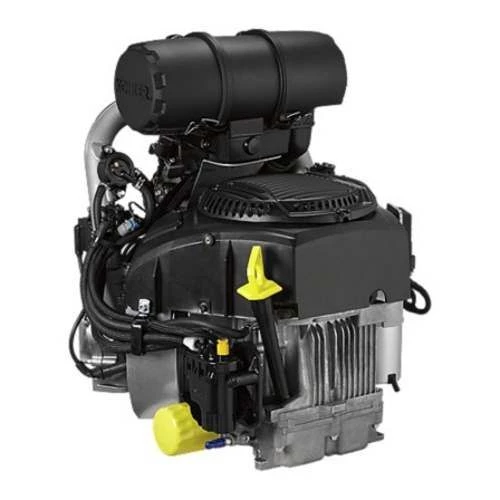

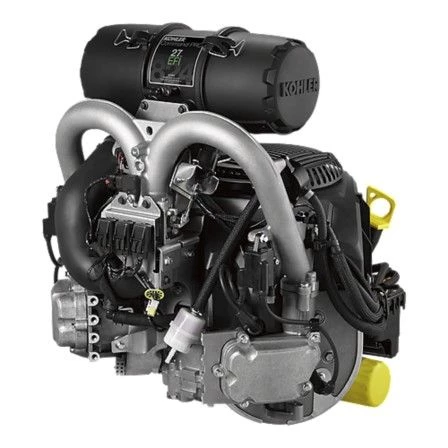

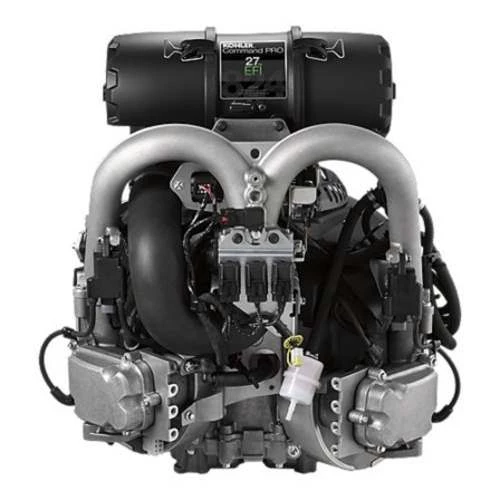

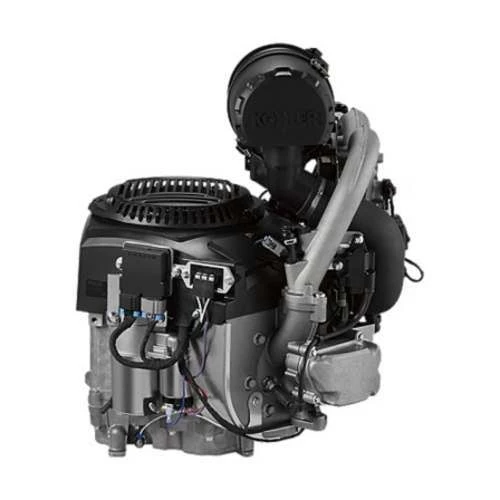

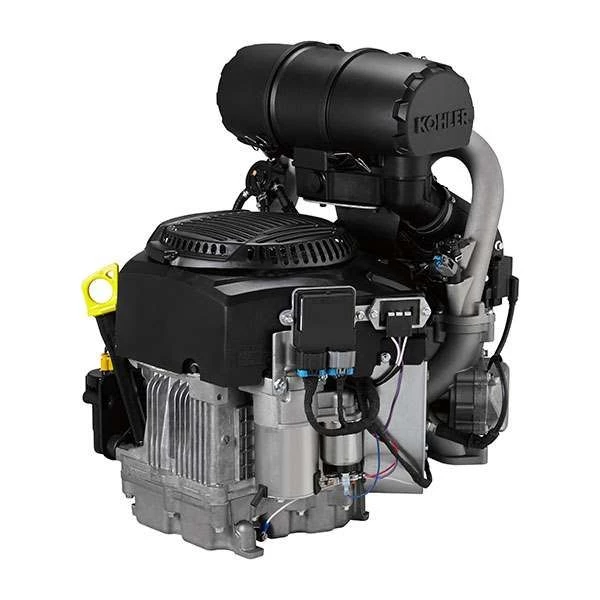

Engine Type:
824cc, 27 hp, 4-cycle, gasoline,V-twin, air-cooled, vertical shaft
Model |
ECV850 |
| J1940 Power hp(kW) 1 | 27 (20.1) |
| Displacement cu in (cc) | 50.3 (824) |
| Bore in (mm) | 3.4 (86) |
| Stroke in (mm) | 2.8 (71) |
| Peak Torque lbs. ft (Nm) | 48 (65.1) |
| Compression Ratio | 8.9:1 |
| Dry Weight lbs (kg) | 136 (61.7) |
| Oil Capacity U.S. quarts (L) | () |
| Lubrication | Full pressure w/full-flow filter |
| Dimensions L x W x H in | 19.7 x 20.5 x 24 |
| J1995 Power hp (kW) 3 | 29.73 (22.17) |
| J1995 Rated Speed (RPM) | 3600 |
Shaft Type: Vertical
Shaft Width: 1.125″
Shaft Length: 4.3″
Equipment Types
This engine powers the following equipment:
- Garden Tractor
- Rear Engine Rider
- Lawn Tractor
- Yard Tractor
- Portable Generator
- Mower, Zero Turn Radius
